Description
The File List Action Component is to get a list of files that match the pattern.
| Output payload | Description |
|---|---|
cv.Payload | Outputs the contents of the read directory as individual JSON objects. |
The contents of the directory will have the following data:
For example the pattern "icons/*" might return something like this for each file:
{"IsDir":false,"ModTime":"2021-08-10T13:18:29.2577374+09:00","Name":"arrow_down.bmp","Path":"icons/arrow_down.bmp","Size":824}
| Data | Description |
|---|---|
| IsDir | true for directories, false for files |
| ModTime | Modification Date and Time |
| Name | File name |
| Path | File path |
| Size | File size |
Component Properties
| Name | Description |
|---|---|
| Pattern | The conditional expression to list files, e.g. icons/*. Note these folders are relative to actmgr/data |
| IncFILE | Specify whether to include files or not |
| IncDIR | Specify whether to include directories or not |
| Include Hidden Files and Directories | Include hidden files in the target |
| Filter by Modified Time | Specify the file filtering method. Options are as follows: • No Filter • Specify Time Range • Files Older Than N Days • Files Newer Than N Days • Files Older Than N Hours • Files Newer Than N Hours • Files from Past N Days • Files from Past N Hours • Files from Past N Minutes |
| Start Time | Used when "Specify Time Range" mode is selected. Specify the start time of the range. |
| End Time | Used when "Specify Time Range" mode is selected. Specify the end time of the range. |
| N | Specify the value of N days/hours/minutes according to the filter mode. Used for filtering files based on modification time. |
| Sort Order | Specify the sort order of search results: • File Path (Ascending) • File Path (Descending) • File Name (Ascending) • File Name (Descending) • Modified Time (Ascending) • Modified Time (Descending) • File Size (Ascending) • File Size (Descending) |
| Max File Count | Specify the maximum number of files to output. If 0, there is no limit. |
The pattern without a file path refers to the actmgr/data folder, so all paths need to be relative to that folder. You can find more details about the paths on different operating systems here.
Note: The payload will contain the metadata for one file returned by the list each. If you follow the File List component with the Join component, you'll get a payload with every file metadata joined together. In this case, you will get:
[
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"arrow_down.bmp",
"Path":"icons/arrow_down.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"arrow_left.bmp",
"Path":"icons/arrow_left.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"arrow_right.bmp",
"Path":"icons/arrow_right.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"arrow_up.bmp",
"Path":"icons/arrow_up.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"circle.bmp",
"Path":"icons/circle.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"correct.bmp",
"Path":"icons/correct.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"downloading_f1.bmp",
"Path":"icons/downloading_f1.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"downloading_f2.bmp",
"Path":"icons/downloading_f2.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"downloading_f3.bmp",
"Path":"icons/downloading_f3.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"error.bmp",
"Path":"icons/error.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"sad.bmp",
"Path":"icons/sad.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"smile.bmp",
"Path":"icons/smile.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"zigbee_off.bmp",
"Path":"icons/zigbee_off.bmp",
"Size":824
},
{
"IsDir":false,
"ModTime":"2017-12-14T17:23:11+08:00",
"Name":"zigbee_on.bmp",
"Path":"icons/zigbee_on.bmp",
"Size":824
}

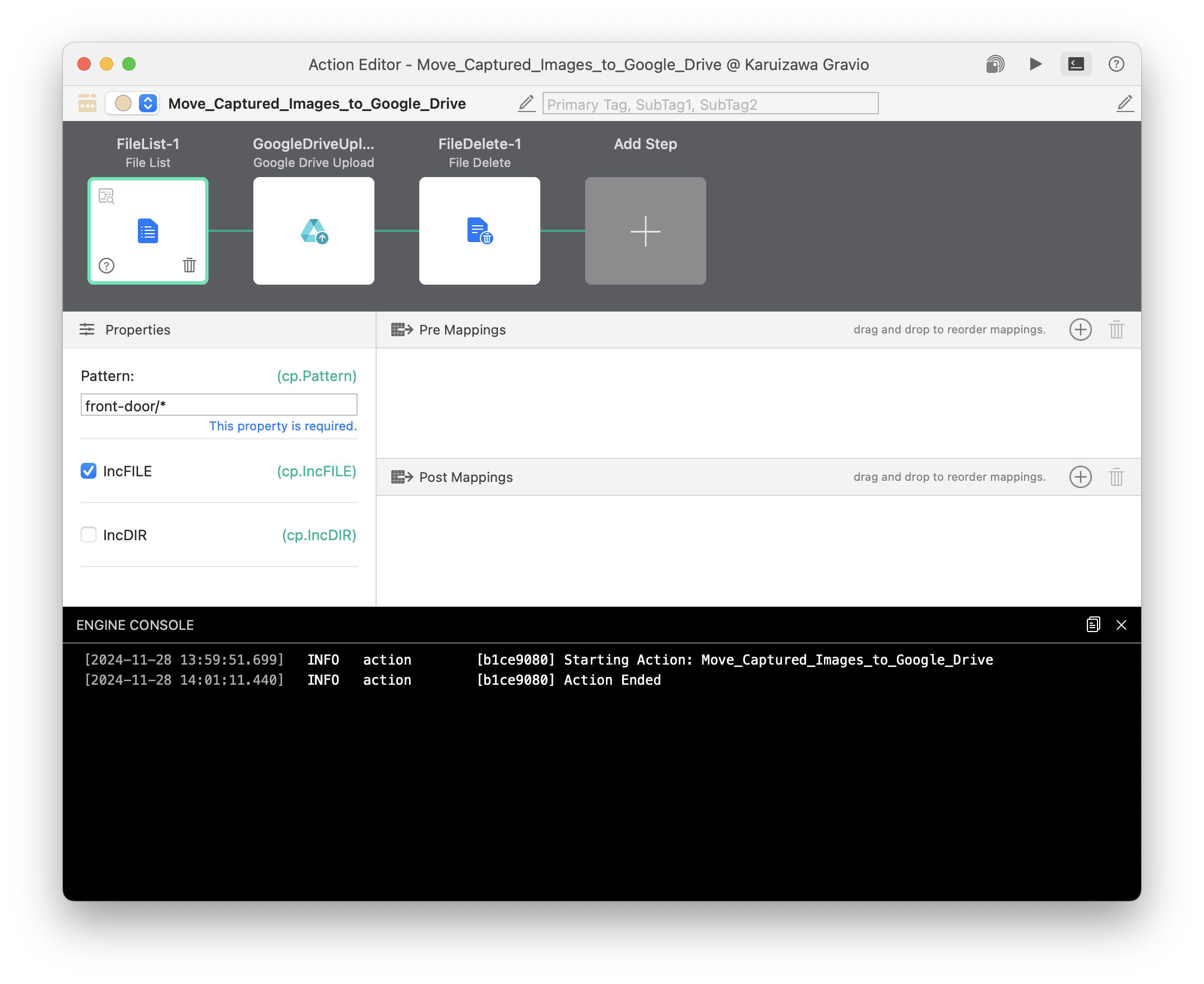

]Example: Uploading Captured Photo Files to Google Drive Automatically
Use the List component to get the array of images
The upload component will iterate through the files. Read in the Google Drive Upload component how to authenticate with Google Drive.
Delete the images in the folder after upload.
