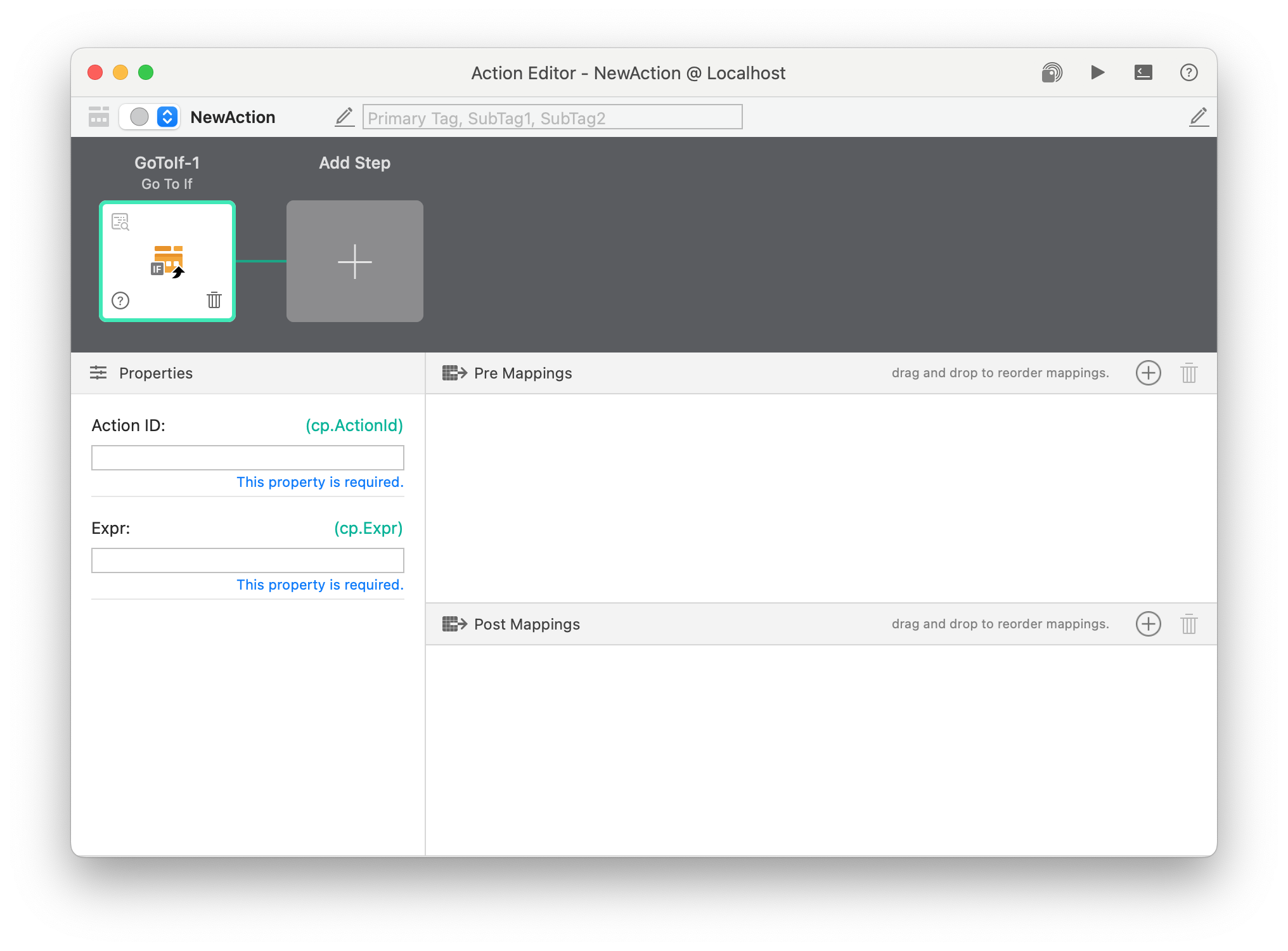

GoTo If

The Go To If component allows continuation of execution with another action if certain conditions are met.

This allows for the reuse of previously created actions.

Conditions for triggering another action can be specified with expressions. If the condition evaluates to true, another action is executed; if false, no other action is performed but the process of the action continues. Variables with prefixes tp. / tv. / ap. / av. / cp. / cv. can be used as comparators in the conditional expressions.

Component Properties

Property Name	Description
Action ID	The ID of the action to execute
Condition	The condition under which to execute the action

Example Conditions	Expression Examples
Targeting Payload, when Payload is numeric	cv.Payload > 10
When Payload is a string	cv.Payload =~ "^abc"
When Payload is a JSON array	cv.Payload[1] > 10
When Payload is a JSON Object	cv.Payload.key1 == "abc"

Action ID

The name of the action, excluding the file extension (.acs), is the Action ID.
