Description
The Call If component is a component that, when conditions are met, executes another action and then continues with the original action.
This allows for the reuse of previously created actions.
Conditions to trigger another action can be specified with expressions. If the condition evaluates to true, another action is executed; if false, no other action is performed, but the process of the action continues.
Variables with prefixes tp. / tv. / ap. / av. / cp. / cv. can be used as comparators in the conditional expressions.

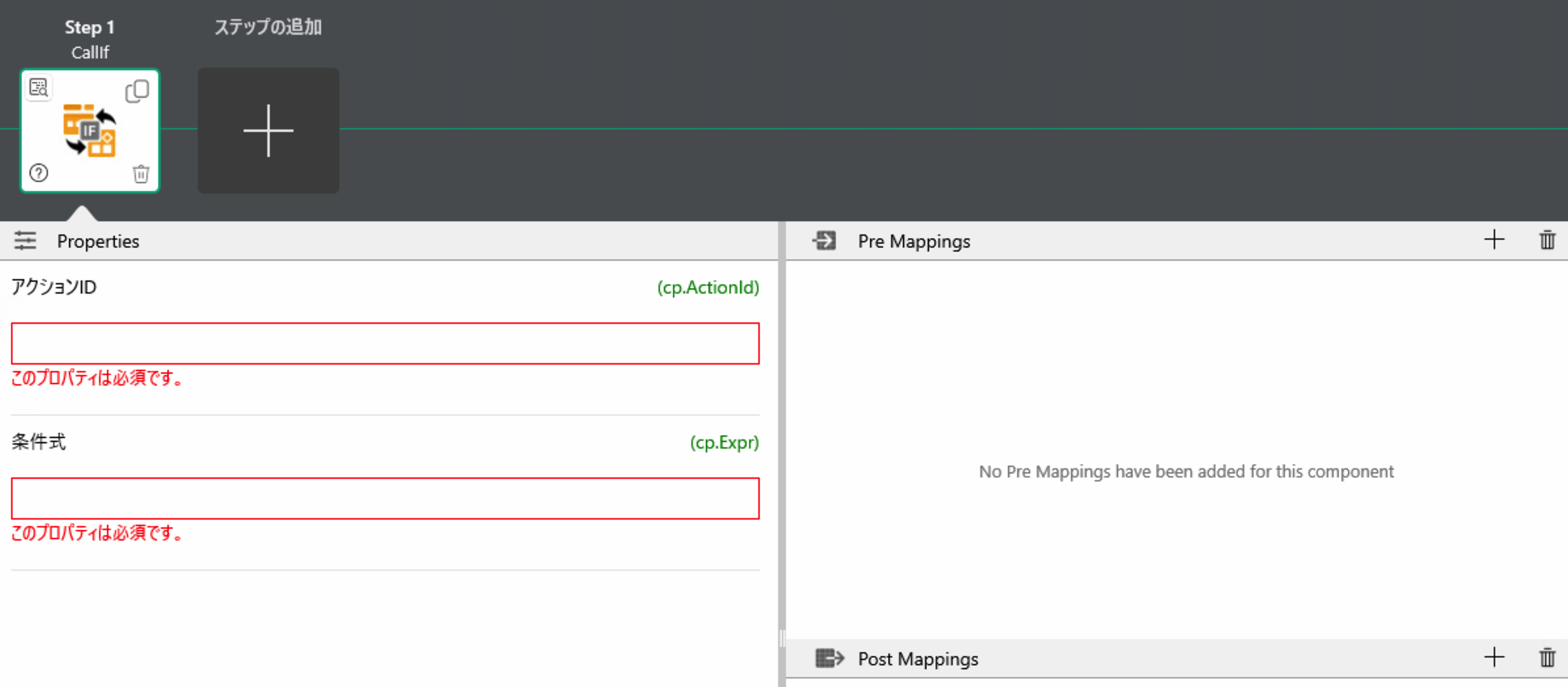

Component Properties
| Property Name | Description |
|---|---|
| Action ID | The ID of the action to execute |
| Condition | The condition under which to execute the action |
| Example Conditions | Expression Examples |
|---|---|
| Targeting Payload, when Payload is numeric | cv.Payload > 10 |
| When Payload is a string | cv.Payload =~ "^abc" |
| When Payload is a JSON array | cv.Payload[1] > 10 |
| When Payload is a JSON Object | cv.Payload.key1 == "abc" |
Action ID
The name of the action, excluding the file extension (.acs), is the Action ID.
